System Storage:

CPU:ARM9 S3C2440 400MHz
SDRAM:64M (after the system starts, the remaining capacity is up to 60M)
Nand Flash: 128M
SD Card:Can support up to 32G
FRAM: Can be frequently read and write data

Display and Control Commands:

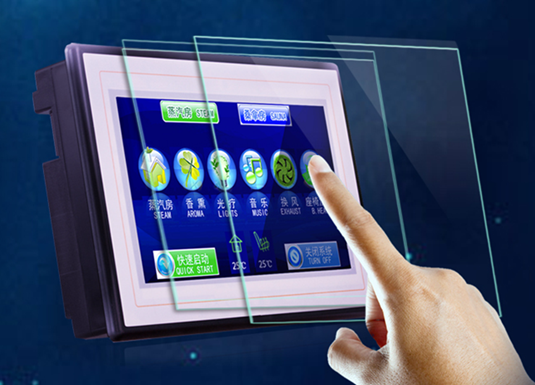

7.0 inch(16:9)TFT color touch LCD,260000 colors
800×480 resolution, support screen rotation
LED backlight (adjustable)
High strength touch screen (1000000 points)
Standard soft keyboard, support handwriting and pinyin input method

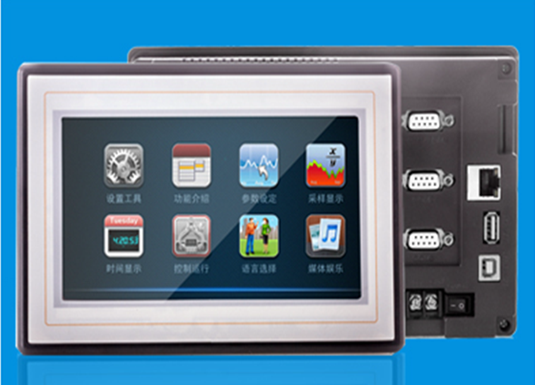

Serial Interface:

3 RS232
1 RS485(share with one of RS232)
Data bit can be 5,6,7 or 8; Baud rate can up to 115200b/s

USB Interface:

USB1.1 HOST can connect to U-Disk, USB mice, keyboards
USB1.1 DEVICE can connect to computer for it access over ActiveSync

Network Interface:

100M Network interface for remote data transmission and control
Wi-Fi(selection)

Audio Interface:

Buzzer for common warning
Internal mono speaker, external stereo earphone jack

Power Requirement:

Power Input:DC 9V~28V
Power Consumption:130~400mA @ DC 12V 4.8W

Machine Characteristics:

Mounting:Embedded installation shell
Display Size:154×93 (±0.3mm)
Mounting Hole Size:190×138 (±0.3mm)
Front Panel Size:202×148(±0.3mm)

Work Environment:

Operating Temperature:-20°C~70°C
Storage Temperature:-30°C~85°C
Operating Humidity:45%~80%RH
Front Panel is dampproof and waterproof

Safety Certification:

CE EN 55022,55024
ROHS IEC 62321
FCC
Temperature

Other Functions:

RTC
WDT

Operating System:

Genuine edition Windows CE5.0(simplified Chinese, other language version like English, traditional Chinese, Japanese, Korean ,etc. can be customized); Windows CE6.0 can be upgraded

Bootloader:

XIP (64M, after the system starts, the remaining capacity is up to 60M; the starting time is less than 10 seconds)

File System:

TFAT, to avoid file damage caused by power-fail

Data Storage:

FRAM (data storage and frequently data read and write, read and write is equal to RAM)
SD Card
Nand Flash (for frequently read and write, FRAM is recommended)

System Tools:

Windows command shell,
Web-based administration manager,
ActiveSync

Development Environment of Application:

BOMC WinCE 5.0 SDK,
Visual Studio 2005, Visual Studio 2008, EVC/SP4,
C Libraries Services (COM and DCOM),
Microsoft Foundation Classes (MFC),
Microsoft .NET Compact Framework 2.0,
XML including DOM XQL,
Winsock 2.2

Protocol Stack:

TCP, UDP, IPv4, SNMP, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSL, DHCP, SNTP, SMTP, Telnet,FTP, PPP

Device Driver:

RS232,RS485,IO API,WDT API,SD card,USB, Network,Screen rotation API,Backlight adjustment API,Audio adjustment(support WAP),Touch screen adjustment API,FRAM API,Buzzer API, etc.

Support the Switch between Application and System:

Only need a jumper switch and to rename the file, run Windows CE or Application could be chosen.

Support Live Online Remote Upgrade and Maintenance:

Support Boot LOGO online change by SD card
Support System and Application live online upgrade by SD card
Support Program upgrade by serial interface, USB and network

Encryption Program:

Offer an encryption method for program, and each device has unique IMEI. The user can add identifying code in the application to prevent it being illegal copy.

Application Routine:

Offer application source code of port, transmission, storage, UI interface design, etc.
